Custom Properties and Save As Macro

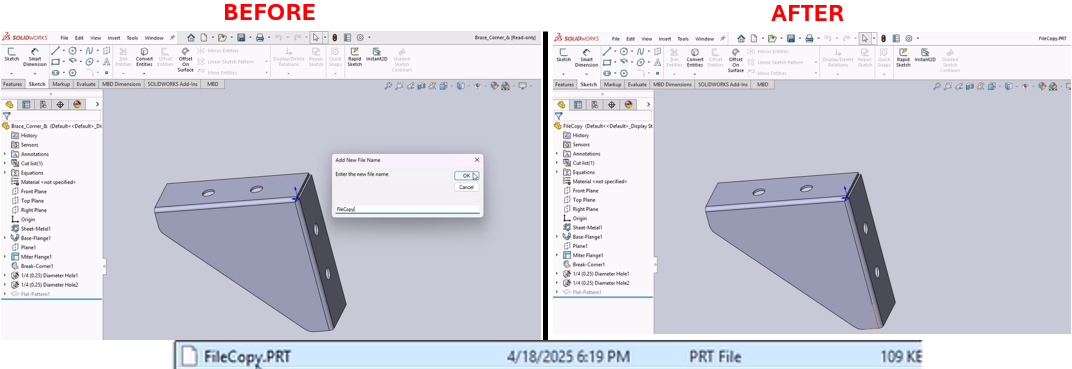

Description of image

Description

This macro automates the process of managing custom properties and saving a SolidWorks model with a new file name in a user-specified folder. It is particularly useful for standardizing and organizing files with consistent metadata and locations.

System Requirements

  • SolidWorks Version: SolidWorks 2014 or newer
  • Operating System: Windows 7 or later

Pre-Conditions

Note
  • A SolidWorks model document must be open.
  • The macro requires the user to input a new file name and select a target folder for saving the file.

Results

Note
  • Existing custom properties (drawing number, old drawing number, search description, and material) are removed and replaced with new ones.
  • The document is saved with the specified file name in the chosen folder.

Steps to Setup the Macro

1. Run the Macro:

  • The macro will prompt you to input a new file name.
  • After entering the name, you will be asked to select a target folder using a folder browser dialog.
  • The macro will then save the document with the specified name and add predefined custom properties.

2. Custom Property Management:

  • You can edit the custom properties added by modifying the relevant lines in the macro code.

VBA Macro Code

' Disclaimer:
' The code provided should be used at your own risk.
' Blue Byte Systems Inc. assumes no responsibility for any issues or damages that may arise from using or modifying this code.
' For more information, visit [Blue Byte Systems Inc.](https://bluebyte.biz).

Option Explicit

' Declare SolidWorks application and model variables
Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2
Dim retval As String
Dim FileName As String
Dim Path As String

Sub main()

    ' Initialize SolidWorks application and active document
    Set swApp = Application.SldWorks
    Set swModel = swApp.ActiveDoc

    ' Ensure a document is active
    If swModel Is Nothing Then
        MsgBox "No active document found. Please open a SolidWorks file and try again.", vbCritical, "Error"
        Exit Sub
    End If

    ' Remove existing custom properties
    retval = swModel.DeleteCustomInfo2("", "drawing number")
    retval = swModel.DeleteCustomInfo2("", "old drawing number")
    retval = swModel.DeleteCustomInfo2("", "search description")
    retval = swModel.DeleteCustomInfo2("", "material")

    ' Add new custom properties with default values
    retval = swModel.AddCustomInfo3("", "drawing number", swCustomInfoText, "")
    retval = swModel.AddCustomInfo3("", "old drawing number", swCustomInfoText, "")
    retval = swModel.AddCustomInfo3("", "search description", swCustomInfoText, "")
    retval = swModel.AddCustomInfo3("", "material", swCustomInfoText, """SW-Material""")

    ' Prompt user for a new file name
    FileName = InputBox("Enter the new file name", "Add New File Name", FileName)
    If FileName = "" Then
        MsgBox "File name cannot be empty. Please try again.", vbExclamation, "Error"
        Exit Sub
    End If

    ' Prompt user for folder selection
    Path = BrowseFolder("Select a Folder/Path")
    If Path = "" Then
        MsgBox "You must select a valid folder to save the file.", vbExclamation, "Error"
        Exit Sub
    End If

    ' Ensure the folder path ends with a backslash
    If Right(Path, 1) <> "\" Then Path = Path & "\"

    ' Save the file with the new name in the selected folder
    swModel.Extension.SaveAs Path & FileName & ".prt", swSaveAsVersion_e.swSaveAsCurrentVersion, swSaveAsOptions_e.swSaveAsOptions_Copy, Nothing, 0, 0

    ' Notify the user of successful save
    MsgBox "File saved successfully at: " & Path & FileName & ".prt", vbInformation, "Save Successful"

End Sub

' Function to open a folder browser dialog
Function BrowseFolder(Optional Title As String) As String
    Dim SH As Object
    Dim F As Object

    ' Create Shell Application object
    Set SH = CreateObject("Shell.Application")
    ' Open the folder browser dialog
    Set F = SH.BrowseForFolder(0, Title, 0)
    If Not F Is Nothing Then
        BrowseFolder = F.Items.Item.Path ' Get selected folder path
    Else
        BrowseFolder = "" ' Return empty if no folder selected
    End If
End Function

Folder Browser Module Code

Option Explicit

Private Const BIF_RETURNONLYFSDIRS As Long = &H1
Private Const MAX_PATH As Long = 260

' Windows API declarations
Declare Function SHGetPathFromIDListA Lib "shell32.dll" ( _
    ByVal pidl As Long, _
    ByVal pszBuffer As String) As Long
Declare Function SHBrowseForFolderA Lib "shell32.dll" ( _
    lpBrowseInfo As BrowseInfo) As Long

' Structure for folder browsing dialog
Type BrowseInfo
    hOwner As Long
    pidlRoot As Long
    pszDisplayName As String
    lpszINSTRUCTIONS As String
    ulFlags As Long
    lpfn As Long
    lParam As Long
    iImage As Long
End Type

' Function to display a folder selection dialog
Function BrowseFolder(Optional Caption As String = "Select a Folder") As String
    Dim BrowseInfo As BrowseInfo
    Dim FolderName As String
    Dim ID As Long
    Dim Res As Long

    ' Initialize the BrowseInfo structure
    With BrowseInfo
        .hOwner = 0
        .pidlRoot = 0
        .pszDisplayName = String$(MAX_PATH, vbNullChar)
        .lpszINSTRUCTIONS = Caption
        .ulFlags = BIF_RETURNONLYFSDIRS
    End With

    ' Prepare a buffer for the folder path
    FolderName = String$(MAX_PATH, vbNullChar)

    ' Display the folder selection dialog
    ID = SHBrowseForFolderA(BrowseInfo)
    If ID Then
        ' Convert the PIDL to a file system path
        Res = SHGetPathFromIDListA(ID, FolderName)
        If Res Then
            BrowseFolder = Left$(FolderName, InStr(FolderName, vbNullChar) - 1)
        Else
            BrowseFolder = ""
        End If
    Else
        BrowseFolder = ""
    End If
End Function
