Apply Custom Line Width and Color to Selected Edge in SolidWorks Drawing

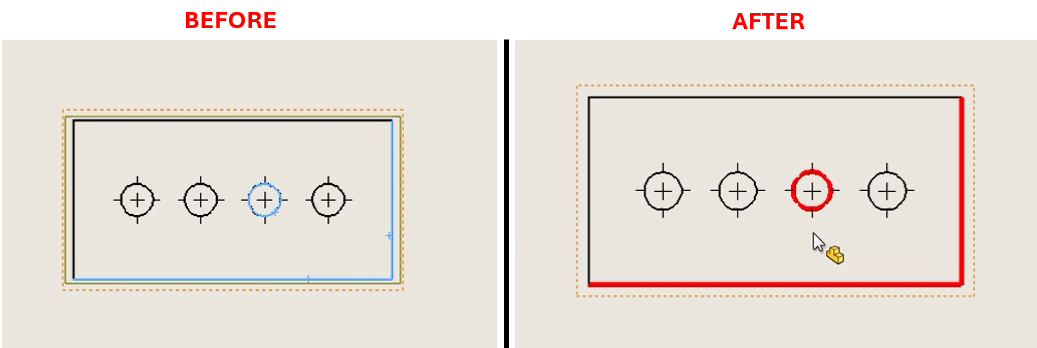

Description of image

Description

This macro applies custom line properties (color and width) to selected edges in a SolidWorks drawing. It helps users visually differentiate specific edges or lines in a drawing by changing their appearance based on the specified properties.

System Requirements

  • SolidWorks Version: SolidWorks 2014 or newer
  • Operating System: Windows 7 or later

Pre-Conditions

Note
  • The active document must be a drawing file.
  • The user must select at least one edge in the drawing before running the macro.

Results

Note
  • The selected edge(s) will have their line width and color updated based on the specified properties.
  • A confirmation message will be shown if the operation is successful, or an error message if there are any issues.

VBA Macro Code

' Disclaimer:
' The code provided should be used at your own risk.
' Blue Byte Systems Inc. assumes no responsibility for any issues or damages that may arise from using or modifying this code.
' For more information, visit [Blue Byte Systems Inc.](https://bluebyte.biz).

Option Explicit

Sub main()

    ' Declare SolidWorks application object and initialize it
    Dim swApp As SldWorks.SldWorks
    Set swApp = Application.SldWorks

    ' Get the currently active document
    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc

    ' Check if there is an active document
    If Not swModel Is Nothing Then
        ' Check if the active document is a drawing
        If swModel.GetType = swDocDRAWING Then
            ' Declare drawing document object and selection manager object
            Dim swDraw As SldWorks.DrawingDoc
            Set swDraw = swModel
            Dim swSelMgr As SldWorks.SelectionMgr
            Set swSelMgr = swModel.SelectionManager

            ' Check if any edge is selected in the drawing
            If swSelMgr.GetSelectedObjectCount2(-1) > 0 Then

                ' Specify custom line properties
                Dim edgeWidth As Double
                Dim edgeColor As Integer
                edgeWidth = 0.0007          ' Line width in meters (e.g., 0.0007m = 0.7mm)
                edgeColor = 255             ' Color in RGB (e.g., 255 = Red)

                ' Apply custom line width and color to the selected edge(s)
                swDraw.SetLineWidthCustom (edgeWidth)
                swDraw.SetLineColor edgeColor

                ' Notify the user of successful application
                MsgBox "Line width and color applied successfully to the selected edge(s).", vbInformation, "Success"
            Else
                ' Error message if no edge is selected
                MsgBox "Please select at least one edge in the drawing to apply the properties.", vbExclamation, "No Edge Selected"
            End If
        Else
            ' Error message if the active document is not a drawing
            MsgBox "The active document is not a drawing. Please open a drawing and select an edge.", vbExclamation, "Invalid Document Type"
        End If
    Else
        ' Error message if no document is open
        MsgBox "No active document found. Please open a drawing and select an edge.", vbExclamation, "No Active Document"
    End If

End Sub

Macro

You can download the macro from here

Customization

Need to modify the macro to meet specific requirements or integrate it with other processes? We provide custom macro development tailored to your needs. Contact us.
